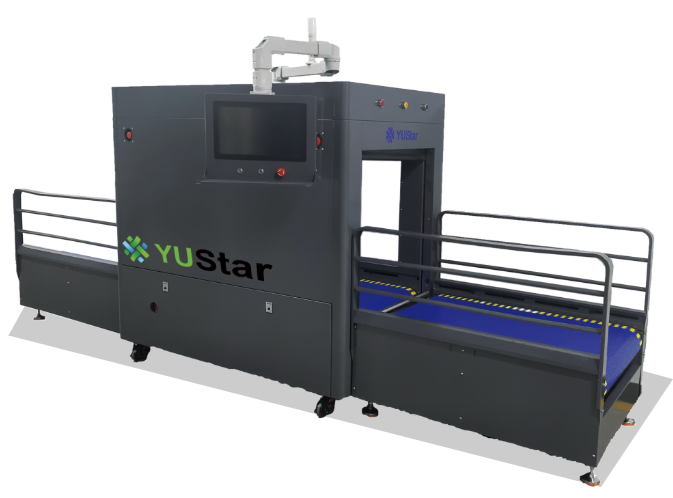

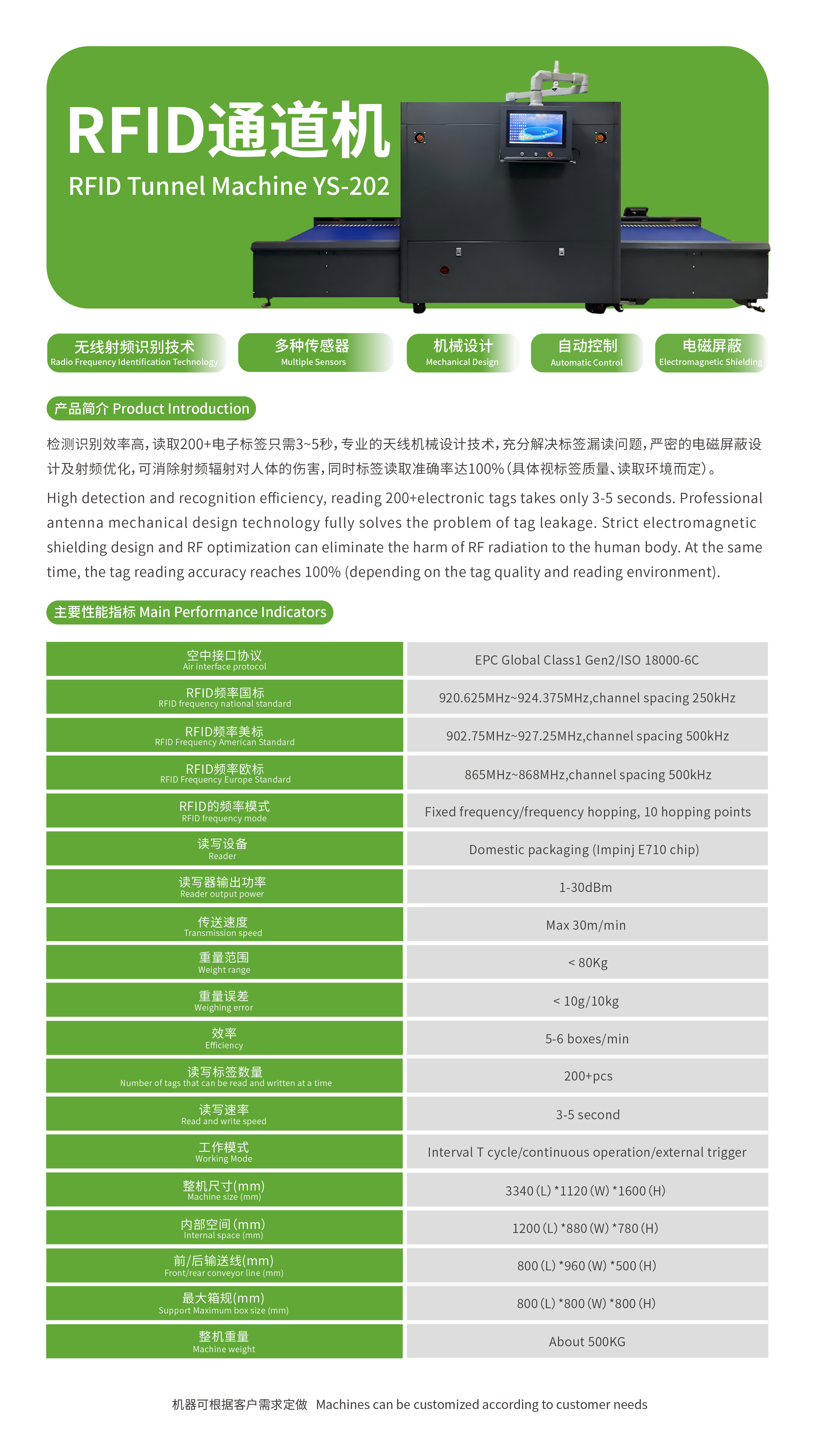

产品简介 Product Introduction
检测识别效率高，读取200+电子标签只需3-5秒。专业的天线机械设计技术，充分解决标签溢读问题，专业的电磁屏蔽设计及射频优化，可消除射频辐射对人体的伤害，同时标签读取准确率达100%(具体视标签质量、读取环境而定)。
High detection and recognition efficiency, reading 200+electronic tags takes only 3-5 seconds. Professional antenna mechanical design technology fully solves the problem of tag leakage. Strict electromagnetic shielding design and RF optimization can eliminate the harm of rf radiation to the human body. At the same time, the tag reading accuracy reaches 100% (depending on the tag quality and reading environment).
主要性能指标 Main Performance Indicators
空中接口协议
Air Interface Protocol
EPC Global Class1 Gen2/ISO 18000-6C
RFID频率标准
RFID Frequency Standard
920.625MHz~924.375MHz,channel spacing 250kHz
RFID频率美标
RFID Frequency American Standard
902.75MHz~927.25MHz,channel spacing 500kHz
RFID频率欧标
RFID Frequency Europe Standard
865MHz~868MHz,channel spacing 500kHz
RFID的频率模式
RFID frequency mode
Fixed frequency/frequency hopping, 10 hopping points
读写设备
Reader
Domestic packaging (Impinj E710 chip)
读写器输出功率
Reader output power
1-30dBm
传送速度
Transmission speed
Max 30m/min
重量范围
Weight range
< 80Kg
重量误差
Weight error
< 10g/10kg
效率
Efficiency
5-6 boxes/min
读写标签数量
Number of tags that can be read and written at a time
200+pcs
读写速率
Read/write speed
3-5 second
工作模式
Working mode
Interval T cycle/continuous operation/external trigger
整机尺寸(mm)
Machine size (mm)
3340(L)*1120(W)*1600(H)
内部空间(mm)
Internal space (mm)
1200(L)*880(W)*780(H)
前/后输送线(mm)
Front/rear conveyor line (mm)
800(L)*960(W)*500(H)
最大箱规(mm)
Support Maximum box size (mm)
800(L)*800(W)*800(L)
整机重量
Machine weight
About 500KG
机器可根据客户需求定做 Machines can be customized according to customer needs
