热压智能数据管理系统
产品简介 Product Introduction

工业热压智能管理系统配置IOT数据采集模块，手机移动管理APP，多维度统计看板
1.满足裁片精细化管理需求：可根据裁片部位、工艺要求及材料特性，不同设备上设定相应的温度、压力、时间等工艺标准 值；实时采集与监控热压作业的温度、压力、时间等工艺参数记录生产过程全部数据；当实时采集数据超出允许浮动范围， 设备自动触发声光报警
2.支持手机端管理工厂的热压设备，查看热压 设备的生产统计数据。
3.支持多语言，多维度客制化看板开发。
Industrial Hot Pressing Intelligent Management System is equipped with IOT data acquisition, mobile APP, multi-dimensional dashboard.
1. Precise Cut-Piece Control Set temperature, pressure & time standards,Real-time monitoring & data recording.Automatic sound-light alarm for out-of-range data
2. Mobile Device Management，Remotely monitor equipment & view production stats.
3. Multi-language & Customizable Dashboards.

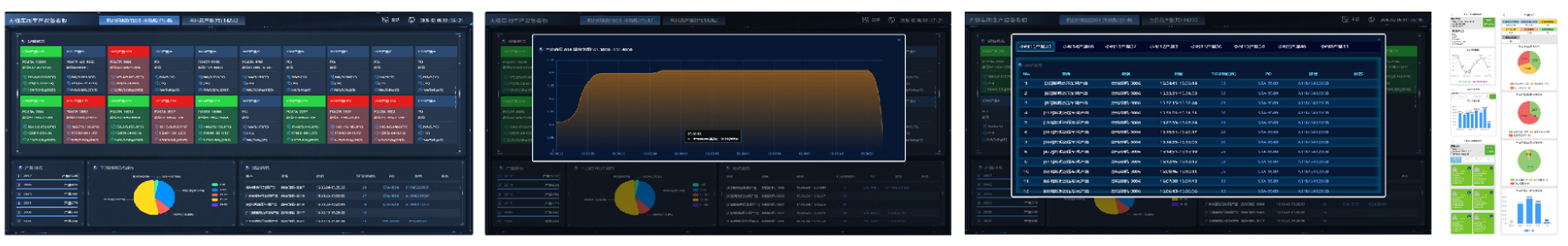

系统界面截图
软件 Software
温度数据采集与显示
Temperature Data Acquisition & Display
实时温度采集，热压过程数据与标准值实时比对
Real-time sampling, process data compared with set value during hot pressing
压力数据采集与显示
Pressure Data Acquisition & Display
实时压力采集，下压过程曲线与标准值做实时比对
Real-time sampling, process curve compared with set value during pressing
异常温压数据声光报警
Audio-Visual Alarm For Abnormal Temperature & Pressure
超出允许浮动数据范围，界面红光提示 + 蜂鸣报警
Red light indication + buzzer alarm when out of tolerance
热压机管理APP
Heat Press Machine Management APP
移动端实时查看，管理各工厂的热压机设备（运行状态，异常处理等）
Real-time mobile monitoring and management of hot presses (running status, fault handling, etc.)
多维度统计看板
Multi-dimensional Statistical Dashboard
热压机设备的使用率，异常作业数据分布等等
quipment utilization rate, abnormal operation data distribution, etc.
硬件 Hardware
中央处理器
CPU
RK3568 64-bit Quad-core ARM Cortex-A55 2.0GHz
显示屏幕
Display Screen
LCD 10.1" 800*1280, 60Hz
电池
Battery
Auto power on, key shutdown, no built-in battery
充电器
Charger
Input: 100-240V Output:12V/4A
系统
System
Android 13 & Self-developed dedicated control software

机器可根据客户需求定做  Machines can be customized according to customer needs
