产品简介 Product Introduction

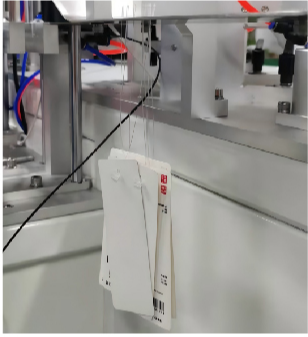

通过自动化控制及传感技术，自动上料，定位穿绳，自动下料整合，减轻员工的工作量及工作误差。使用自动化控制及传感
技术，自动上料，定位穿绳，自动下料整合，减轻员工的工作量及工作误差。
Through automatic control and sensing technology, automatic feeding, positioning and threading, automatic
feeding integration, reduce the workload and work error of employees.By using automation control and sensing
technology, automatic feeding, positioning and threading of ropes, and automatic unloading integration are
achieved to reduce the workload and work errors of employees.

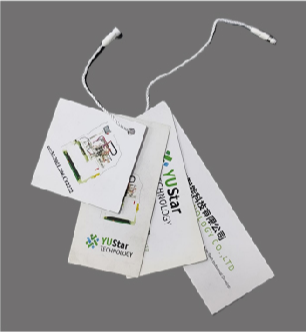

效益(以3个吊牌组合为例) Capacity：3 tags for one group as an example
| 设施 Facilities |
工人 Worker |
标准工时 Standard working time |
生产力 Production/M·H |
日产量 Yieid/Day |
|---|---|---|---|---|
| 手工作业方式 Manual work |
一人上工 One person manual work |
8S/PCS | 450 | 3600 |
| 吊粒/胶针自动穿牌机 Automatic Plastic pin & Hanging tablets Threading Machine |
一人两机 One operator two machines |
5S/PCS | 1440 | 11520 |
主要技术规格 Main Technical Specification
标准尺子(mm)
Label size (mm)
L: 45-100 W: 34/45/50
生产效率
Capacity
3S/PCS
电源
Power
220V 50Hz
气压
Compressed air
0.5~0.7MPa
组合数量
Number of groups
1~4pcs
仓位容量
Bin storage
300PCS/Bin
外形尺寸(mm)
Dimension (mm)
1200 (L) * 900 (W) * 1500 (H)
机器可根据客户需求定做 Machines can be customized according to customer needs
