自动打印贴标签机 YS-T-A.2
产品简介 Product Introduction

打印贴标签机通过工业打印机打印热敏标签并在布料平面上贴上相关版图的裁片信息(文字、数字、二维码)。可以和裁床打配合,并打通相关数据。
The machine prints thermal sensitive label stickers by industrial printer, and stick the cut piece information(word, number, two-dimensional code) on the fabric surface, it can match with cutting room and data communication.

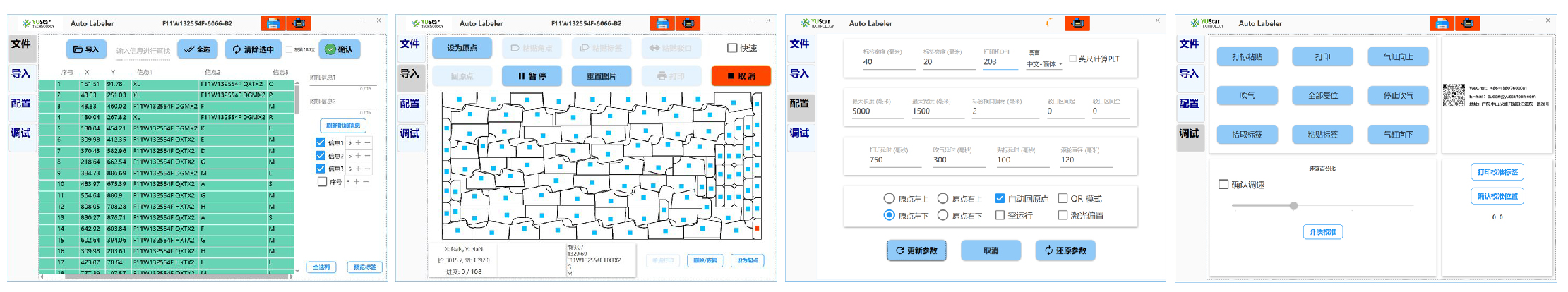

系统界面截图
主要性能指标 Main Performance Indicators
标签尺寸(mm)
Label size (mm)
Min:20*40mm Max:50*70mm
速度
Running speed
4S/pcs
电源
Power
220V 50Hz
气源
Compressed air
0.5MPa
文件格式
File formats
DXF\PLT\NC\CUT\AIG
打印模式
Print mode
Thermal(热敏)

机器可根据客户需求定做  Machines can be customized according to customer needs
