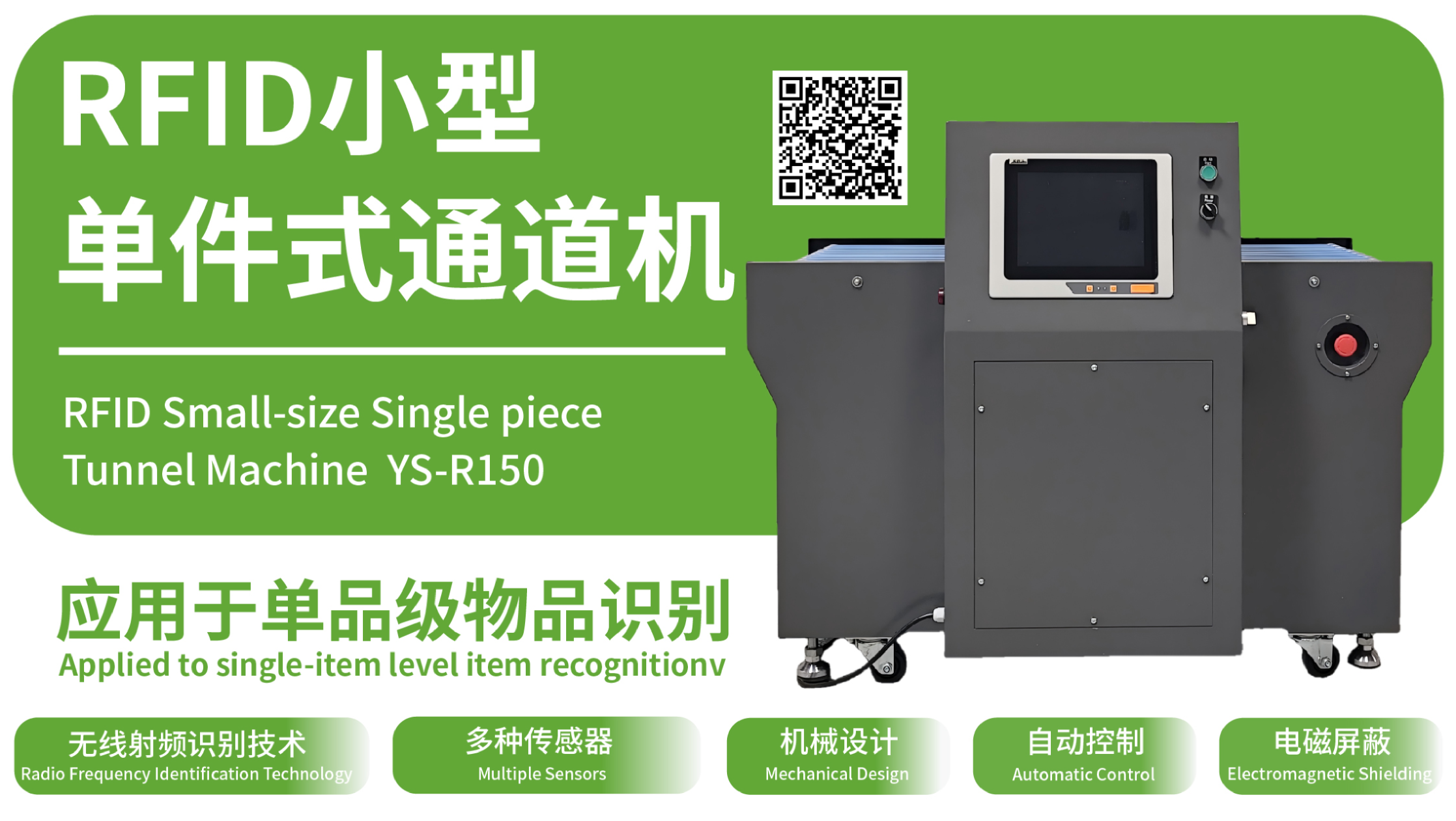

产品简介 Product Introduction
解决了产品在供应链流通中，标签漏读串读等问题，配合出入库管理系统完全克服了条码管理的缺陷，实现了真正的单品
级管理，节省了劳动成本，大大提高了工作效率。
Solved problems such as missing and serial reading of labels in the supply chain circulation of products, fully
overcame the shortcomings of barcode management with the help of the inbound and outbound management
system, achieved true item level management, saved labor costs, and greatly improved work efficiency
主要性能指标 Main Performance Indicators
空中接口协议
Air interface protocol
EPC Global Class1 Gen2/ISO 18000-6C
RFID频率国标
RFID frequency national standard
920.625MHz~924.375MHz,channel spacing 250kHz
RFID频率美标
RFID Frequency American Standard
902.75MHz~927.25MHz,channel spacing 500kHz
RFID的频率模式
RFID frequency mode
Fixed frequency/frequency hopping, 10 hopping points
整机尺寸(mm)
Machine size (mm)
1200(L)*830(W)*1050(H)
内部空间（mm）
Internal space (mm)
500(L)*600(W)*150(H)
皮带面离地高度（mm）
Belt surface height above ground(mm)
800±50
最大通过宽度*高度（mm）
Maximum passing width * height(mm)
600*150
读写设备
Reader
Domestic packaging (Impinj E710 chip)
读写器输出功率
Reader output power
1-30dBm
传送速度
Transmission speed
Max 30m/min
效率
Efficiency
60pieces/min
整机重量
Machine weight
About 200KG
读码器品牌
Code reader brand
Hikvision
读码器视野范围（mm）
Field of view of code reader(mm)
100(L)*150(W)
机器可根据客户需求定做 Machines can be customized according to customer needs
